Standard Push Pull Cables

Our full range of push-pull controls provides reliable linear motion transmission from one location to another, offering both ease of installation and superior performance.

Push-Pull Cables


Features:

  • Constructed with durable materials and long-lasting seals for environmental protection.
  • Withstands extreme temperatures ranging from -65°F to 230°F.

Applications:

  • Implement and throttle control
  • PTO/4WD and valve activation
  • Remote battery and electrical disconnect
  • Transmission shifting
  • Hydrostatic drives and latches


Blue Max Push-Pull Cables

Blue Max™ Push Pull Cables

The Blue Max™ motion control cable line is engineered for high-performance push-pull applications. Designed with aviation engineering principles, these cables deliver extreme low friction, minimal motion loss, and an unparalleled smooth feel—making them the industry leader in performance.

Key Features:

  • Exceptional for long runs with complex cable routing and highly efficient for shorter runs.
  • True 4-inch minimum bend radius for versatile installation.
  • Lubed for life with a binder-wired PTFE core conduit.
  • Durable outer jacket resistant to abrasions, gasoline, diesel, and chemicals.

If control issues have you frustrated, switch to the Blue Max™ high-performance cable line for superior results.

Available exclusively with 10-32 and M5 end rods.


How To Order Custom Cables

A - Duty (Load capacities & length of travel)

Push Pull Cables Load Capacity Table


B - Conduit End Fittings

  • Type T: Threaded conduit end fitting designed for bulkhead mounting.
  • Type G: Grooved conduit end fitting suitable for mounting with U-bolts or clamps.
Drawing of Cable Mounts (Conduit Caps)


C - Overall Length & Travel

For Replacement Cables:

  • Remove the old cable.
  • Measure the overall length as shown in the diagram below.
  • Measure the travel length (1" to 6"). Note: 7" and 8" travel options are available for select sizes.
  • Determine the thread size ("F") and select the appropriate basic part number from the table above.

For New Cables:

  • Determine the required overall length.
  • Measure the required travel. Add 1/4" to this measurement, then round up to the nearest whole inch.
  • Assess load requirements and select the appropriate basic part number from the table above.

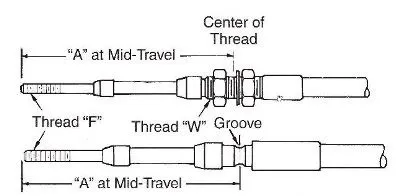

Drawing of a Push Pull Cable


The manufacturer cannot account for all possible applications of this part. It is the user’s responsibility to determine its suitability for the intended use, especially in situations where safety is critical. Improper application or installation may result in property damage, serious injury, or death. For technical assistance, please call 260-749-5105.
