| 1310 |
3.469" |
1.062" |
5-153X / 5-1310X / 5-1310-1X |
- Spline O.D.: 1.250"
- No. of Splines: 16 Splines

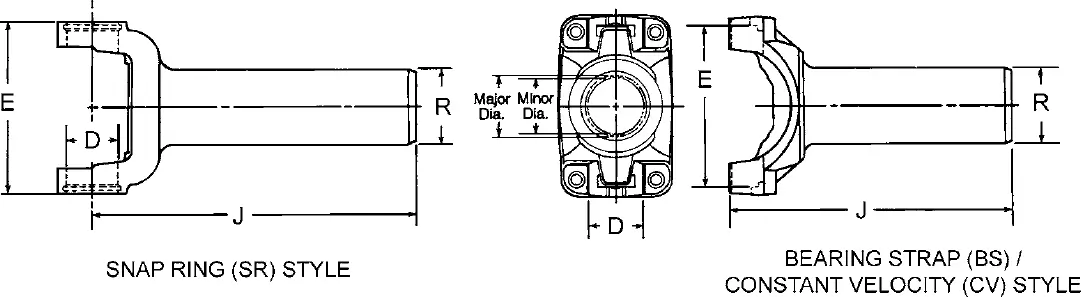

- Centerline to End of Spline (J): 5.000"
- Joint Angle: 18
- Centerline to Face of Plug (F): 1.000"
- Dust Cap & Washer Kit: D2A
- Slip Yoke Plug #: 2-68-23
- Style: SR
- Spicer Part #: 2-3-1421KX
- Spline O.D.: 1.250"
- No. of Splines: 16 Splines
- Centerline to End of Spline (J): 6.562"
- Joint Angle: 30
- Centerline to Face of Plug (F): 1.438"
- Dust Cap & Washer Kit: D2K
- Slip Yoke Plug #: 2-68-23
- Style: SR
- Spicer Part #: 2-3-4441KX
- Meritor Part #: 131N-3-4441KX
- Neapco Part #: N2-3-4441KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Splines
- Centerline to End of Spline (J): 5.375"
- Joint Angle: 15
- Centerline to Face of Plug (F): 1.000"
- Dust Cap & Washer Kit: D2C
- Slip Yoke Plug #: 3-68-23
- Style: SR
- Spicer Part #: 2-3-128KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Splines
- Centerline to End of Spline (J): 6.000"
- Joint Angle: 20
- Centerline to Face of Plug (F): 1.062"
- Dust Cap & Washer Kit: 211121X
- Slip Yoke Plug #: 2-68-143
- Style: SR
- Spicer Part #: 2-3-7981KX
- Meritor Part #: 131N-3-7981KX
- Neapco Part #: N2-3-7981KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Splines
- Centerline to End of Spline (J): 6.812"
- Joint Angle: 30
- Centerline to Face of Plug (F): 1.500"
- Dust Cap & Washer Kit: 211121X
- Slip Yoke Plug #: 2-68-143
- Style: SR
- Spicer Part #: 2-3-8001KX
- Meritor Part #: 131N-3-8001KX
- Neapco Part #: N2-3-8001KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Splines
- Centerline to End of Spline (J): 7.875"
- Joint Angle: 30
- Centerline to Face of Plug (F): 1.500"
- Dust Cap & Washer Kit: 211121X
- Slip Yoke Plug #: 2-68-143
- Style: SR
- Spicer Part #: 2-3-8021KX
- Meritor Part #: 131N-3-8021KX
- Neapco Part #: N2-3-8021KX
|
| 1330 |
3.625" (SR Style 3.875") |
1.062" |
5-213X / 5-1330X / 5-1330-1X |
- Spline O.D.: 1.375"
- No. of Splines: 15 Based On 16 Spline
- Centerline to End of Spline (J): 6.625"
- Joint Angle: 35
- Centerline to Face of Plug (F): 1.000"
- Dust Cap & Washer Kit: 211121X
- Slip Yoke Plug #: 3-68-23
- Style: SR
- Spicer Part #: 2-3-7681KX
- Meritor Part #: 133N-3-7681KX
- Neapco Part #: N2-3-7681KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 6.000"
- Joint Angle: 15
- Centerline to Face of Plug (F): 1.000"
- Dust Cap & Washer Kit: D3E
- Slip Yoke Plug #: 3-68-23
- Style: SR
- Spicer Part #: 2-3-4681KX
- Neapco Part #: N2-3-4681KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 7.500"
- Joint Angle: 35
- Centerline to Face of Plug (F): 1.000"
- Dust Cap & Washer Kit: 211121X
- Slip Yoke Plug #: 3-68-23
- Style: SR
- Spicer Part #: 2-3-8041KX
- Neapco Part #: N2-3-8041KX
|
| 1350 |
3.875" |
1.188" |
5-178X OR 5-1350X |
- Spline O.D.: 1.375"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 5.812"
- Joint Angle: 20
- Centerline to Face of Plug (F): 1.188"
- Dust Cap & Washer Kit: D3G
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-1501KX
- Meritor Part #: 135N-3-1501KX
- Neapco Part #: N3-3-1501KX
- Spline O.D.: 1.375"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 6.625"
- Joint Angle: 20
- Centerline to Face of Plug (F): 1.188"
- Dust Cap & Washer Kit: D3G
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-2591KX
- Spline O.D.: 1.463"
- No. of Splines: 21 Based On 22 Involute Spline
- Centerline to End of Spline (J): 7.312"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.190"
- Dust Cap & Washer Kit: -
- Slip Yoke Plug #: 500166-24
- Style: SR
- Spicer Part #: 3-3-6201X
- NOTE: Use boot kit 212010X; order separate
- Spline O.D.: 1.463"
- No. of Splines: 21 Based On 22 Involute Spline
- Centerline to End of Spline (J): 7.312"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.190"
- Dust Cap & Washer Kit:
- Slip Yoke Plug #: 500166-24
- Style: SR
- Spicer Part #: 3-3-6981X
- NOTE: Use boot kit 212010X; order separate
- Spline O.D.: 1.500"
- No. of Splines: 15 Based On 16 Spline
- Centerline to End of Spline (J): 7.312"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.188"
- Dust Cap & Washer Kit: 211158X
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-2801KX
- NOTE: Use boot kit 211503X; order separate
- Spline O.D.: 1.500"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 7.312"
- Joint Angle: 20
- Centerline to Face of Plug (F): 1.188"
- Dust Cap & Washer Kit: D3A
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-488KX
- Meritor Part #: 135N-3-488KX
- Neapco Part #: N3-3-488KX
|
| 1410 |
4.438" |
1.188" |
5-160X OR 5-1410X |
- Spline O.D.: 1.375"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 5.812"
- Joint Angle: 20
- Centerline to Face of Plug (F): 1.156"
- Dust Cap & Washer Kit: D3G
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-1481KX
- Meritor Part #: 141N-3-1481KX
- Neapco Part #: N3-3-1481KX
- Spline O.D.: 1.500"
- No. of Splines: 14 Based On 16 Spline
- Centerline to End of Spline (J): 7.281"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.156"
- Dust Cap & Washer Kit: -
- Slip Yoke Plug #: 500166-24
- Style: SR
- Spicer Part #: 3-3-4871X
- NOTE: Use boot kit 212010X; order separate
- Spline O.D.: 1.500"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 5.250"
- Joint Angle: 20
- Centerline to Face of Plug (F): 1.156"
- Dust Cap & Washer Kit: D3K
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-2041KX
- Meritor Part #: 141N-3-2041KX
- Neapco Part #: N3-3-2041KX
- Spline O.D.: 1.500"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 6.500"
- Joint Angle: 55
- Centerline to Face of Plug (F): 1.156"
- Dust Cap & Washer Kit: D3A
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-118KX
- Meritor Part #: 141N-3-118KX
- Neapco Part #: N3-3-118KX
- Spline O.D.: 1.500"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 6.688"
- Joint Angle: 28
- Centerline to Face of Plug (F): 1.344"
- Dust Cap & Washer Kit: D3B
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-798KX
- Spline O.D.: 1.500"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 7.812"
- Joint Angle: 28
- Centerline to Face of Plug (F): 1.344"
- Dust Cap & Washer Kit: D3A
- Slip Yoke Plug #: 3-68-33
- Style: SR
- Spicer Part #: 3-3-508KX
- Meritor Part #: 141N-3-508KX
- Neapco Part #: N3-3-508KX
- Spline O.D.: 1.587"
- No. of Splines: 23 Based On 24 Involute Spline
- Centerline to End of Spline (J): 6.720"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.220"
- Dust Cap & Washer Kit: -
- Slip Yoke Plug #: 500166-26
- Style: SR
- Spicer Part #: 3-3-7001X
- NOTE: Use boot kit 212007X; order separate
|
| 1480 |
4.438" |
1.375" |
5-188X OR SPL55X |
- Spline O.D.: 1.562"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 6.812"
- Joint Angle: 21
- Centerline to Face of Plug (F): 1.312"
- Dust Cap & Washer Kit: D3H
- Slip Yoke Plug #: 3-68-163
- Style: SR
- Spicer Part #: 3-3-1601KX
- Meritor Part #: 148N-3-1601KX
- Neapco Part #: N3-3-1601KX
|
| 1550 |
5.250" |
1.375" |
5-155X OR SPL70X |
- Spline O.D.: 1.750"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 6.875"
- Joint Angle: 22
- Centerline to Face of Plug (F): 1.375"
- Dust Cap & Washer Kit: D4K
- Slip Yoke Plug #: 4-68-143
- Style: SR
- Spicer Part #: 4-3-1241KX
- Meritor Part #: 155N-3-1241X
- Neapco Part #: N4-3-1241KX
- Spline O.D.: 2.000"
- No. of Splines: 16 Spline
- Centerline to End of Spline (J): 8.812"
- Joint Angle: -
- Centerline to Face of Plug (F): 2.730"
- Dust Cap & Washer Kit: 5-86-68
- Slip Yoke Plug #: 5-68-78X
- Style: SR
- Spicer Part #: 4-3-2041KX
- NOTE: Relief valve in plug
|
| SPL55 |
4.440" |
1.374" |
SPL55-1X |
- Spline O.D.: 1.587"
- No. of Splines: 23 Based On 24 Involute Spline
- Centerline to End of Spline (J): 7.949"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.732"
- Dust Cap & Washer Kit: -
- Slip Yoke Plug #: 500166-26
- Style: SR
- Spicer Part #: 55-3-61X
- NOTE: Use boot kit 212094X; order separate
|
| SPL70 |
5.250" |
1.375" |
SPL70X |
- Spline O.D.: 1.776"
- No. of Splines: 26 Based On 27 Involute Spline
- Centerline to End of Spline (J): 8.480"
- Joint Angle: -
- Centerline to Face of Plug (F): 1.890"
- Dust Cap & Washer Kit: -
- Slip Yoke Plug #: 70-68-18X
- Style: SR
- Spicer Part #: 70-3-21X
- NOTE: Use boot kit 212146X; order separate
|
